Bridge
Hipshot™ Fixed Bridge, .4125" (10.5mm) Spacing
Hipshot™ Solo Saddle Bridge, .4125" (10.5mm) Spacing

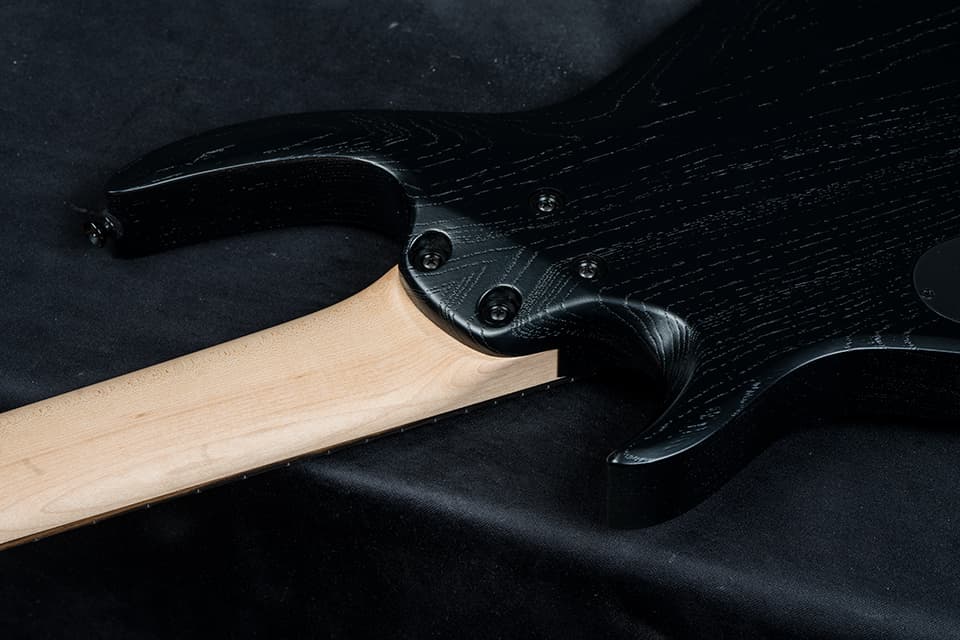

Construction
Bolt-on with radiused neck heel
Body Dimensions
38.25" Long, 1.65" Thick, 12.6" Wide
39" Long, 1.65" Thick, 12.6" Wide
39.75" Long, 1.65" Thick, 12.7" Wide
Electronics
Master Volume And Tone Controls, 5-Way Blade-Style Pickup Selector, flush mount output jack and rear access output jack
Fingerboard
Ebony With 14" Radius
Ebony With 20" Radius
Frets
24 Stainless Steel Medium-Jumbo, .103" Wide X .048" Tall
Headstock
Inline GT Headstock
Inlays
White Pearl Dots With Standard Black-Ring Luminlay Super Blue Side Dots
Neck
Tung-Oiled Maple With 2-Way Adjustable Truss Rod And Dual Carbon-Fiber Rods For Additional Strength & Stability
Neck Width
1.69" Wide @ Nut, 0.78" Thick @ 1st Fret, 0.88" Thick @ 12th Fret
1.90" Wide @ Nut, 0.82" Thick @ 1st Fret, 0.90" Thick @ 12th Fret
2.02" Wide @ Nut, 0.78" Thick @ 1st Fret, 0.88" Thick @ 12th Fret
2.42" Wide @ Nut, 0.79" Thick @ 1st Fret, 0.91" Thick @ 12th Fret
1.71" Wide @ Nut, 0.78" Thick @ 1st Fret, 0.88" Thick @ 12th Fret
1.92" Wide @ Nut, 0.82" Thick @ 1st Fret, 0.90" Thick @ 12th Fret
2.12" Wide @ Nut, 0.78" Thick @ 1st Fret, 0.88" Thick @ 12th Fret
Pickups
Direct-Mount Passive Kiesel Lithium Humbuckers
Scale Length
25.5"
25.5"
27"
25.5" - 26.5"
25.5" - 27"
26" - 27.5"
Strings
Elixir Nanoweb 1046E
Tuners
Premium Kiesel Locking Tuners, 19:1 Ratio
Patent Number
29/887,209 (patent pending)
